Batty Langley: A Pivotal Figure in the Revival of Gothic Design

This article forms part of the Decorative and Applied Arts Encyclopedia, a master reference hub providing a structured overview of design history, materials, movements, and practitioners.

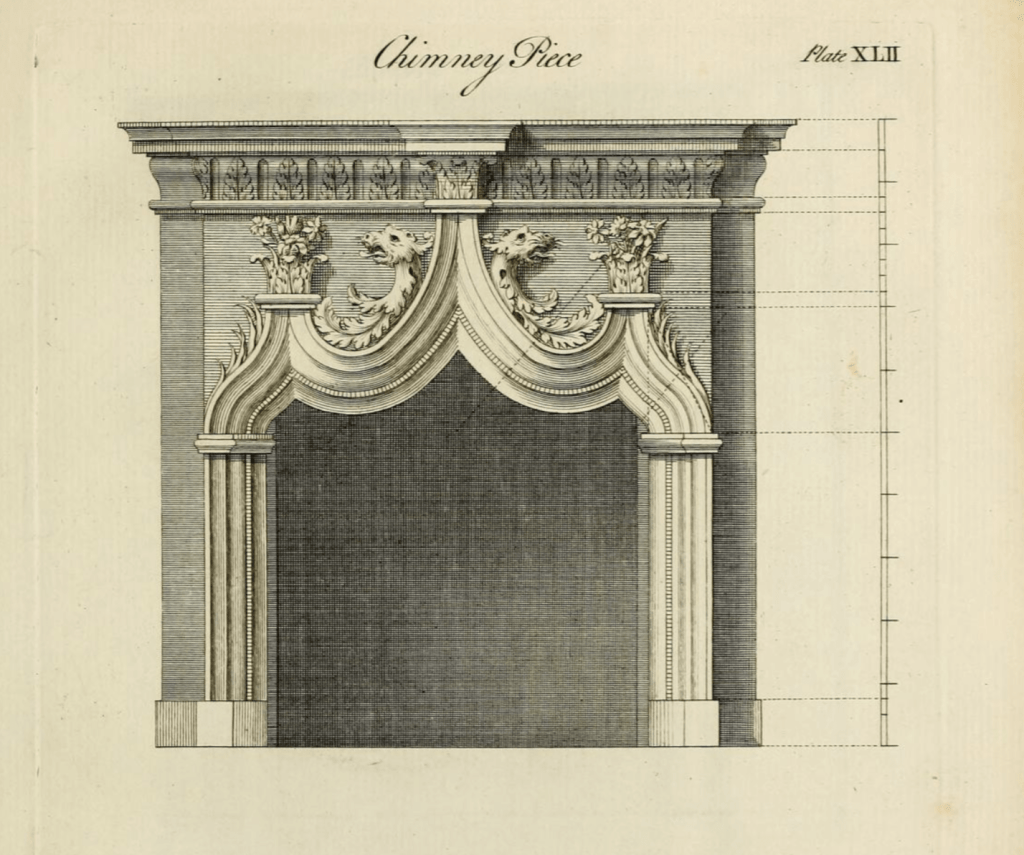

Engraved Gothic chimney-piece design from Batty and Thomas Langley’s 1742 pattern book — Gothic chimney-piece design from Batty and Thomas Langley’s Ancient Architecture, Restored and Improved (1742).

Batty Langley (baptised 1696–1751) was an English garden designer, architectural writer, teacher and prolific publisher. He occupies a distinctive place in the early history of the Gothic Revival because he attempted something both practical and controversial: to organise Gothic architectural forms through proportional rules comparable to those used for the classical orders.

Langley’s influence depended less on a large body of completed buildings than on the circulation of his books. Their engraved plates supplied builders, carpenters, joiners and patrons with designs for doors, windows, chimney-pieces, arcades, garden structures and architectural ornament. Through print, his version of the “Gothick” became available to readers far beyond elite architectural circles.

Batty Langley’s Early Life and Garden Design

Langley was baptised at Twickenham in Middlesex on 14 September 1696. He was the son of Daniel and Elizabeth Langley; his father worked as a gardener in an area known for riverside villas and cultivated estates. Batty initially followed this profession, gaining practical experience in surveying, planting and the design of outdoor spaces.

His early publications reveal the breadth of this background. New Principles of Gardening (1728) presented plans for gardens, mazes and rural improvements. It appeared during a transitional period in English landscape design, when formal geometry coexisted with increasing interest in varied routes, irregular planting and picturesque incident. Langley’s later Gothic structures—temples, seats, pavilions and other garden features—should be understood within this culture of designed landscape experience.

He moved towards architectural work and publishing while retaining the practical outlook of a tradesman and instructor. By the 1730s, he was active in London and offered teaching in drawing, geometry, architecture and garden design. This educational role helps explain the direct organisation of his books: they were intended to be consulted and used, not simply admired as theoretical treatises.

Architectural Writing and Practical Education

Langley produced a remarkable sequence of manuals. Titles included A Sure Guide to Builders (1729), The Builder’s Complete Assistant (1738), The City and Country Builder’s and Workman’s Treasury of Designs (1740), The Builder’s Jewel (1741) and The Workman’s Golden Rule (1750). Several went through later editions, indicating an enduring market for compact, usable architectural information.

These works addressed measurement, geometry, proportion, mouldings and ornamental detail. They helped readers translate architectural ideas into workshop and building practice. In an age before professional architectural education was standardised, such manuals offered an alternative route to technical knowledge. Their readership included the craftspeople responsible for turning drawings into joinery, masonry, metalwork and interior fittings.

Architectural ornament designs from Batty Langley’s City and Country Builder’s and Workman’s Treasury — Architectural designs published in *The City and Country Builder’s and Workman’s Treasury of Designs* (1740). Collection: Victoria and Albert Museum.

Pattern Books and the Spread of Design

Pattern books were important instruments of eighteenth-century design exchange. A plate could detach an ornament from a particular building and make it reproducible in new materials, sizes and settings. Langley’s publications gathered fireplaces, doorcases, window tracery, furniture ornament and garden structures into accessible visual repertoires.

The City and Country Builder’s and Workman’s Treasury of Designs demonstrates this practical method. Its engraved examples allowed craftspeople to study ornamental parts without travelling to see costly buildings or acquiring a specialist library. The Victoria and Albert Museum preserves material from this publication as evidence of how printed design entered the working world of builders and artisans.

Langley did not operate alone. His brother Thomas Langley worked as an engraver and collaborated on major publications. The precision and repeatability of engraving were essential to the project: proportional systems needed clear lines, labelled components and consistent presentation. Authorship therefore joined architectural conception with graphic production.

The 1742 Gothic Pattern Book

Langley’s best-known Gothic publication requires careful bibliographic distinction. In 1742, Batty and Thomas Langley issued Ancient Architecture, Restored and Improved by a Great Variety of Grand and Useful Designs, Entirely New in the Gothick Mode. The Metropolitan Museum of Art catalogues the work under its 1742 title and identifies Batty as author and Thomas as etcher.

In 1747, the plates were reissued under the title by which the project is now more widely known: Gothic Architecture, Improved by Rules and Proportions. Sir John Soane’s Museum records that the complete 1742 edition contained sixty-four plates and an historical dissertation, while the later issue gave the work a new title. Confusing these editions obscures how the publication was packaged and repositioned for its audience.

Improving Gothic with Rules and Proportions

The word “improved” expresses Langley’s central ambition. Classical architecture was commonly explained through named orders and systems of proportion. Medieval Gothic building, by contrast, did not fit comfortably within that academic framework. Langley attempted to create Gothic orders with columns, capitals and ornamental details governed by geometry.

This was not modern archaeological reconstruction. His plates freely combined pointed arches, tracery, pinnacles, clustered shafts and other medievalising motifs within regular proportional schemes. The results belong to eighteenth-century Gothic taste rather than to a precise account of medieval chronology. Nevertheless, the project treated Gothic as a design language worthy of sustained analysis at a time when classical and Palladian models dominated polite architectural theory.

Recent scholarship has encouraged a more nuanced assessment of this work. Langley’s system can appear eccentric when judged against later antiquarian standards, yet its seriousness lies in the effort to make Gothic design teachable, measurable and adaptable. His goal was not merely picturesque novelty. He sought a working grammar for contemporary builders.

Gothic Design for Buildings, Interiors and Gardens

The scope of the sixty-four plates extended across architecture and decoration. Designs included columns, doors, windows, chimney-pieces, arcades, porticoes, temples and pavilions. This range matters because the early Gothic Revival was not confined to churches or complete buildings. It often entered domestic and landscape settings through individual features.

A Gothic chimney-piece could transform an interior without requiring a medievalising house. Likewise, a garden temple or shelter could introduce historical association and visual contrast into a designed landscape. Pattern books supported this selective use of style by allowing patrons and makers to choose elements suited to a particular site, budget or effect.

Horace Walpole and Langley’s Critical Reputation

Langley’s Gothic attracted forceful criticism, most famously from Horace Walpole. Walpole’s own Strawberry Hill at Twickenham pursued a more antiquarian and associative form of Gothic. He regarded Langley’s proportional system as crude and believed that builders using it misunderstood the achievements of medieval architecture.

That judgement influenced later accounts, in which “Batty Langley Gothic” could become a dismissive label. However, the disagreement also reveals competing ideas about historical revival. Walpole valued the authority of surviving medieval examples and their poetic associations. Langley approached style through transferable rules and plates for working designers. Each position addressed a different question: how to recover historical character, and how to make it usable in contemporary practice.

Case Study: Reading an Architectural Drawing Carefully

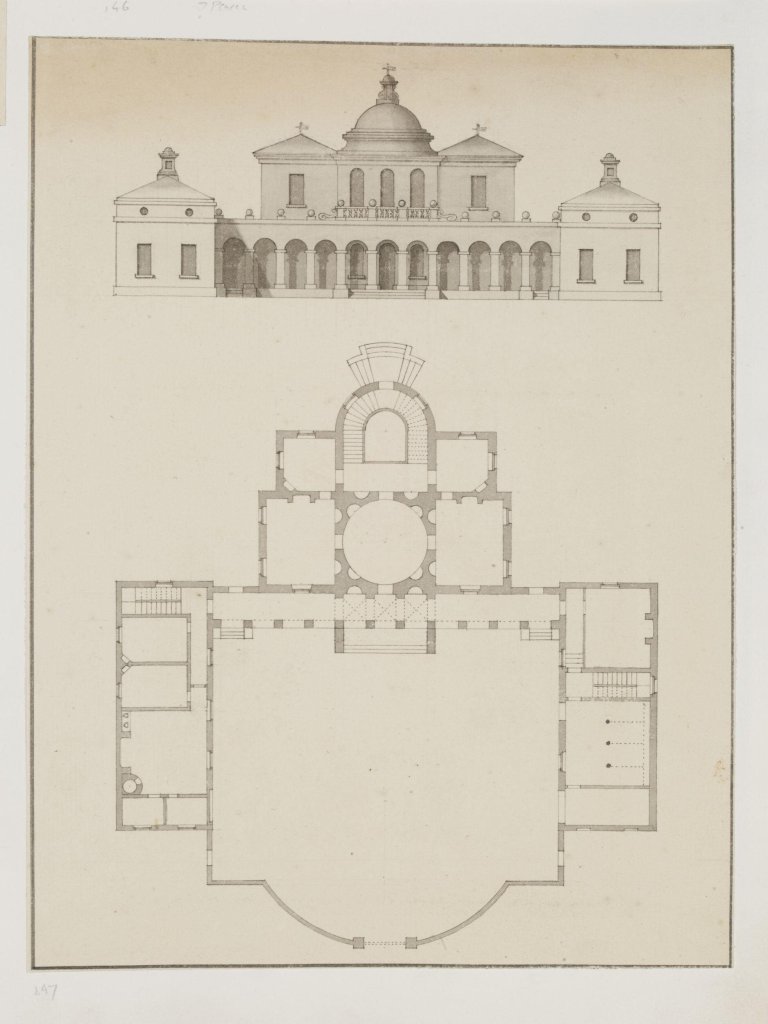

Architectural plan and elevation of a domed house with symmetrical wings. The drawing is reproduced here to illustrate eighteenth-century design communication; a secure attribution should depend on its full catalogue record.

This plan and elevation show how an architectural drawing coordinates external appearance with internal organisation. A central domed volume anchors the composition, while lower wings extend symmetrically to either side. Fine linear work and tonal wash distinguish masses, openings and spatial depth.

The earlier version of this article connected the sheet confidently to Batty Langley and to the V&A’s Vanbrugh Album. Accessible evidence does not establish that attribution securely enough for us to repeat it as fact. The album contains drawings by Vanbrugh and several associated hands, and modern cataloguing acknowledges that attribution within architectural-office material can be complex.

The sheet remains useful as a case study in the visual culture surrounding Langley. Plans, elevations and engraved plates enabled architectural ideas to circulate among patrons, designers and craftspeople. However, similarity of form or technique is not proof of authorship. Responsible design history separates visual interpretation from documented attribution.

Batty Langley’s Legacy

Langley’s importance rests on three connected achievements. First, he promoted Gothic design before the style became a major nineteenth-century movement. Second, he used print to place architectural knowledge in the hands of builders and artisans. Third, he linked geometry, ornament and practical instruction across architecture, interiors and garden design.

His publications did not provide the historically differentiated account of Gothic that later antiquaries developed. Nor did his proportional orders become an accepted academic system. Their value lies elsewhere: they document a formative moment when Gothic was being reimagined as a contemporary resource.

Seen in this context, Batty Langley was neither simply a visionary nor merely the eccentric described by hostile critics. He was a practical mediator between historical style, printed knowledge and the building trades. His work demonstrates how pattern books can influence design culture even when the author’s built legacy is limited.
